503094C 8ft - 10ft Steel Height Adjuster - Manual (fan shaped boards)with Custom Bracket Kit

Quantity x 1,521.00 = See price in cart
free shipping
Unit Quantity Discount / Unit Price / Unit
See price in cart
See price in cart

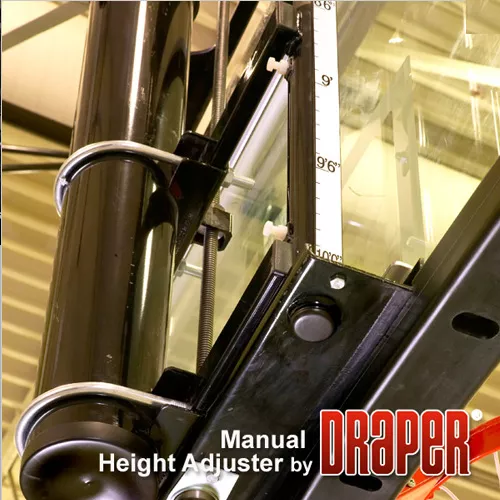

Draper 503094 Manual Backboard Height Adjuster for Fan Shaped Backboards. Operated with a removable awning-style crank handle and actuated via a 3/4" (19mm) –6 Acme threaded rod. Its actuator rod assembly is bolted in place and easily removed for conversion to electric operation. Weight 154 lbs.each  -- *Includes Custom Bracket Kit


IMPORTANT NOTE: This height adjuster has a 3-point conection and will not work with 4-point connection mounting structures found on conversion type backboards. Click here for height adjusters designed for 4-point connection conversion backboard setups.



WARNING !! IMPORTANT NOTE: Before purchasing this product please download and complete the retrofit form below that most closely describes your existing basketball system.  Measurements of your existing system are required before your order can be processed. When completed email to admin@basketball-goals.com or fax to 775-822-1858, please be sure to include your contact information.


Wall Mounted Basketball System

Ceiling Suspended Basketball System






When retrofitting a backboard with a height adjuster please click here to download our retrofit form.  Fill out the information and email the results back to sales@basketball-goals.com



Catelog Page

Frequently Bought Together
+ x
503094C 8ft - 10ft Steel Height Adjuster - Manual (fan shaped boards)with Custom Bracket Kit

Customers who bought this product also purchased

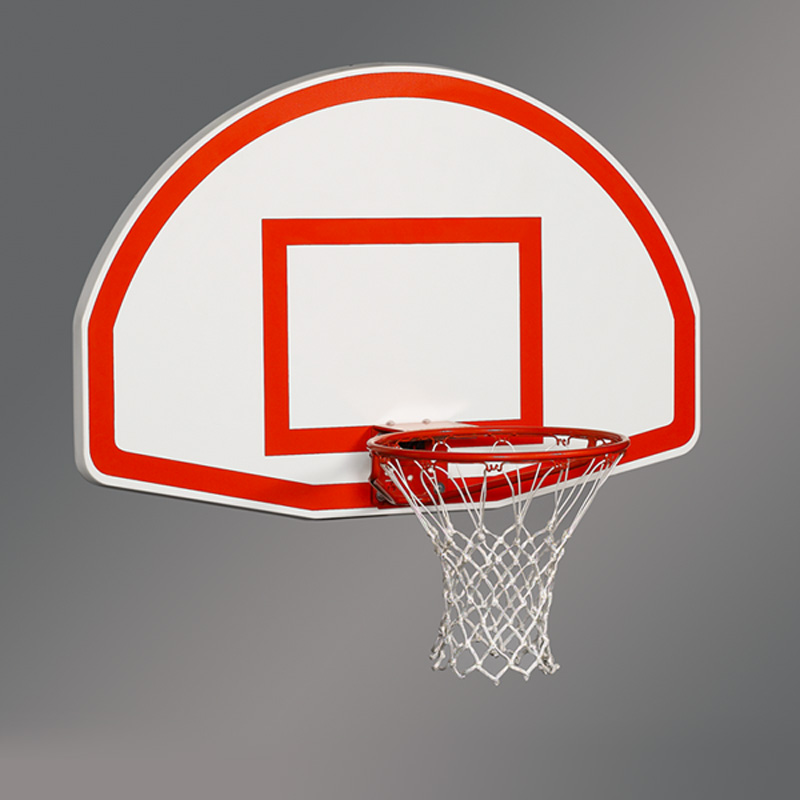

CM Column Mounted Basketball Goal
