Motorized Height Adjuster with Key Switch

Quantity x 1,797.00 = See price in cart
free shipping
Unit Quantity Discount / Unit Price / Unit
See price in cart
See price in cart

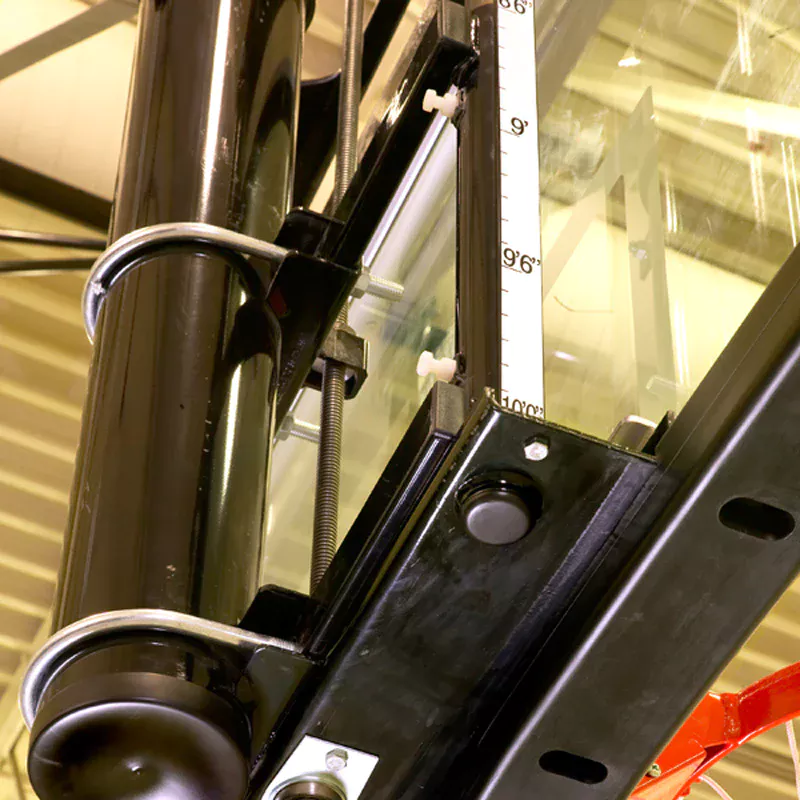

For electric 8'-10' height adjustment for rectangular or fan shaped backboards and goals, featuring a direct goal attachment. The motorized height adjuster is designed to mount to virtually any style of backstop structure. All Draper backboards have a Lifetime Limited Warranty when used with the motorized height adjuster. Height adjuster includes a self-adhesive height scale that is graduated in 1" increments and labeled at 6" intervals. Height scale applied after installation to ensure accuracy.

The motorized height adjuster is built with a main frame-assembly constructed of 2" x 2 1/2" x 1/4" steel angle and 1/4" thick flat steel. Slip tubes consist of 2 5/8" O.D. outer tubes and 2 1/4" O.D. inner tubes. The motorized height adjuster frame assembly is jig welded and factory assembled to ensure precise alignment and smooth operation. The motorized height adjuster is operated via a 115-volt, 1/10 HP, single-phase gear-motor type linear actuator with a 20% duty cycle. Linear actuator motor is rated at 1.4 amps and provides smooth reversible motion for loads up to 600 lbs. Linear actuator includes cam style limit switches that will allow 24" of travel.The Direct Mount 8'-10' Motorized

Height Adjuster is available with standard key switch, EZ Power wireless remote, EZ Stick power wand operation, or control system. Controls other than key switch specified and purchased separately.Height adjuster features adjustable nylon guide bolts to allow user to minimize movement between slip tubes.

The motorized height adjuster's linear actuator assembly is bolted in place and easily removed for conversion to manual operation.
