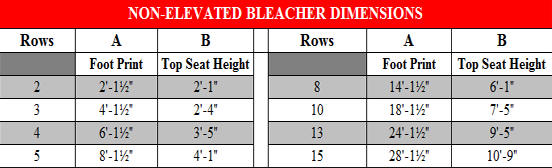

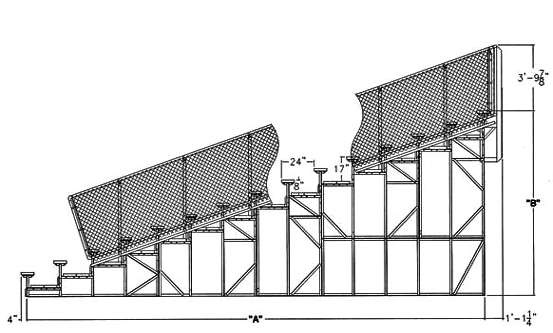

| NON-ELEVATED BLEACHER DIMENSIONS | ROWS | A | B | ROWS | A | B | | | Foot - Print | Top Seat Hgt. | | Foot - Print | Top Seat Hgt. | | 2 | 2' - 1 1/2" | 2' - 1" | 8 | 14' - 1 1/2" | 6' - 1" | | 3 | 4' - 1 1/2" | 2' - 4" | 10 | 18' - 1 1/2" | 7' - 5" | | 4 | 6' - 1 1/2" | 3' - 5" | 13 | 24' - 1 1/2" | 9' - 5" | | 5 | 8' - 1 1/2" | 4' - 1" | 15 | 28' - 1 1/2" | 10' - 9" |

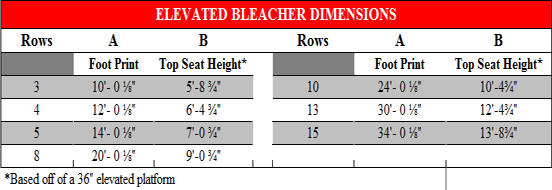

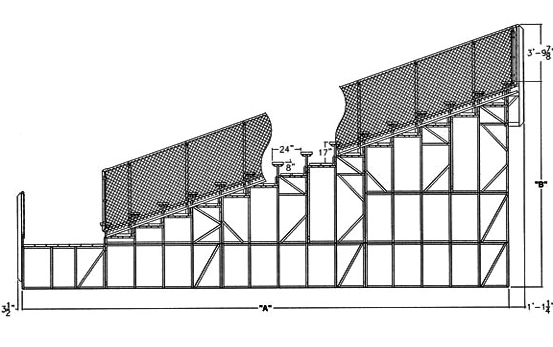

ELEVATED BLEACHERS DIMENSIONS | ROWS | A* | B* | ROWS | A* | B* | | | Foot - Print | Top Seat Hgt. | | Foot - Print | Top Seat Hgt. | | 3 | 10' - 0 1/8" | 5' - 8 3/4" | 10 | 24' - 0 1/8" | 10' - 4 3/4" | | 4 | 12' - 0 1/8" | 6' - 4 3/4" | 13 | 30' - 0 1/8" | 12' - 4 3/4" | | 5 | 14' - 0 1/8" | 7' - 0 3/4" | 15 | 34' - 0 1/8" | 13' - 8 3/4" | | 8 | 20' - 0 1/8" | 9' - 0 3/4" | | | | | *Based on 36" elevation, 7 plank front walkway, aluminum understructure. | | | |
|
