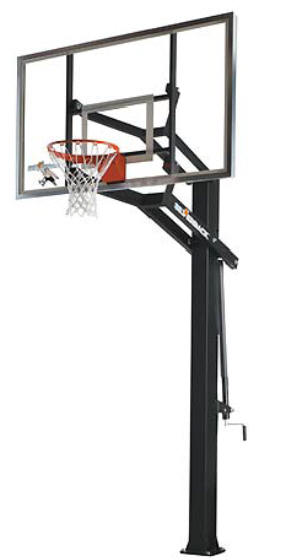

Silverback I

 Specifications: Model B2312 Silverback I

Backboard:
• 72" x 42" Rectangular
• 3/8" Acrylic
• Aluminum Frame
• 4' Overhang
• Silverback Logo
Goal:
• Pro Style, Heavy-Weight Flex Rim
• Stainless Steel Components
• 3/16" Back Plate
• Heavy nylon Net
Board Arms/Wide Span:
• Upper Arm 1-1/2" x 3" Rectangular Tubing
• Lower Arm 2" x 4" Rectangular Tubing
Height Adjustment:
• Actuator with Crank Handle
(7-1/2' to 10')
• Rim Lowers to 7-1/2' to meet ASTM Stds
Pole:
• 6" x 8" x 3/16" (7 gal.)
• 1/2" Thick Base Plate
• Stainless Steel Hardware
• Independent Anchoring System
(See Anchoring Details)
Limited Lifetime Warranty

Shipping Information:

Cartons:4
Total Wgt:402 lbs
Carton 1-Dimensions:62"L x 34-1/2"W x 6-1/2"H,-65 lbs
Carton 2-Dimensions:122"L x 20"W x 12"H,-213 lbs
Carton 3-Dimensions:25"L x 19-1/2"W x 7-1/4"H,-21 lbs
Carton 4-Dimensions:74"L x 44-1/2"W x 4-1/2"H,-103 lbs


Click Photos above to enlarge
