| | Smart
Gym Control System with Touch Pad As an alternative to a key
switch, our electronic touch pad enables you to control your
basketball backstops, gym divider and other Draper electrically
operated gym equipment, all without keys or individual switches. It
can also be used to provide power to your lighting, scoreboards &
other non-Draper equipment. Safety First—Only the keeper of the
programmable four-digit security code can access the system, so
unauthorized persons cannot operate your gym equipment. Save
Money—Because the Smart Gym operates on 24 volt current, you can
save big money by eliminating lengthy 115 volt conduit runs from the
control station to your gym equipment. Click
Here to Download Specifications File. |
Manual
Winch 503086
Manual Winch
For ceiling height under 26', the EZ Fold backstop may be operated
by a manual winch with a removable handle. The winch features double
worm-gear reduction with a 36:1 ratio and composite gears to make
the unit virtually maintenance free. The cable drum is helical
grooved for 1/4", 7 x 19 aircraft cable provide proper spooling. The
drum is equipped with a pressure roller with torsion spring
tensioning to insure the cable tracks the grooves even under slack
conditions. Gears and cable drum are enclosed by integral cover.
Operated with standard removable handle or optional 503049 Portable
Operator.
Download Spec
File. |
Portable
Operator
Compact,
heavy-duty, reversible electric operator for use with manual
winch A0489. Complete with an 18" extension adaptor. Makes the
operation of manual winch backstops a quick, easy task.
Optionally available with a 50' power cord.Download
Spec File. |

|
503029

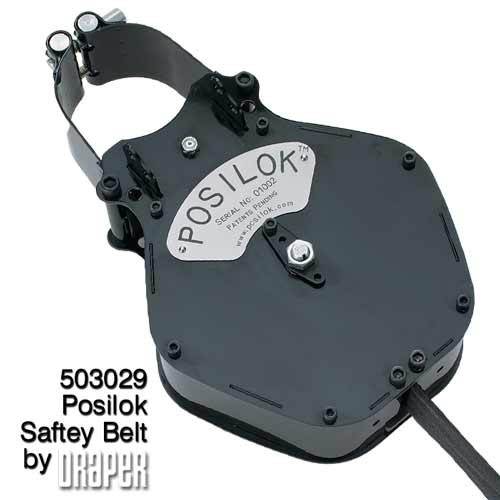

Posilok Safety Belt Safety belts are recommended on all
backstops, especially those suspended over bleachers or playing
areas. The Posilok™ Safety Belt is self-checking, automatically
resets and is virtually fail-safe. The maximum weight of a suspended
load is 1000 lbs. The
Posilok Safety Belt checks the speed of the rotating reel six
times per revolution and will instantly lock if the speed exceeds
the trip point of 1-1/2 feet per second. Belt includes a maximum
extension indicator and breakaway loop to indicate if the Posilok
Safety Belt has been tripped. The Posilok Safety Belt has been cycle
tested to 30 years of typical gymnasium usage with no significant
wear or deterioration of the unit.
503029 specs.
Assembly Instructions
503029
$537.00 FREE SHIPPING
| Motorized
Height Adjuster
The electric linear actuator provides smooth reversible motion for
loads up to 600 lbs. Linear actuator includes factory set cam style
limit switches that will allow 24" of travel. The Motorized Height
Adjuster’s linear actuator assembly is bolted in place and easily
removed for conversion to manual operation.
Download Spec File. | Manual
Height Adjuster
Is operated with a removable awning-style crank handle and actuated
via a 3/4"–6 Acme threaded rod. Its actuator rod assembly is bolted
in place and easily removed for conversion to electric operation.Download
Spec File. |
