GENERAL: This ETL listed scoreboard includes the scoreboard cabinet, mounting hardware, control              console, control cable (sold separately), 10 ft. extension cable, and junction box.

DIMENSIONS: 108" L x 60" H x 6" D (2655 with side sponsor panel measures 156" L x 60" H x 6" D)                (2655 with two side sponsor panels measures 204" L x 60" H x 6" D)

WEIGHT: Approximately 135 lbs (2655 with side sponsor panel weighs 165 lbs) (2655 with two side sponsor panels weighs 195 lbs)

SCOREBOARD CONSTRUCTION: The outer frame is made from extruded aluminum. Internal        structural parts may be extruded aluminum or formed from aluminum sheet. The face and back     are made from aluminum sheet. The face is     finished with enamel paint. Black is the standard           face color. White is the standard color for the sponsor panel and captions.

DISPLAY: The 2655 basketball scoreboard displays HOME and GUEST scores to 199, a 99:00 clock with       1/10^th of a second timing, PERIODS to 4, HOME and GUEST bonus and possession symbols,         HOME and GUEST team fouls, PLAYER NUMBER and FOULS. It has an internal horn. The    volleyball and wrestling captions are mounted on reversible panels at the bottom of the      scoreboard.

DIGITS AND SYMBOLS: Light emitting diodes mounted on printed circuit boards form the digits and           symbols. The clock is formed with 12" red digits, the HOME and GUEST scores are formed with            12" yellow digits, the PERIOD, PLAYER NUMBER and FOULS are formed with 9" green digits,               the HOME and GUEST team fouls are formed with 9" yellow digits, bonus symbols are green, the                 possession symbols and colon / decimal symbols are red.

SCOREBOARD ELECTRONICS: 100% solid state fully enclosed.

CONTROL CONSOLE: The microprocessor control console is constructed of a rugged plastic housing       with a metal back plate. It features a 37 key sealed membrane keypad, a LCD display of game           information, an attached 6 foot power cord, and a lithium cell battery backup to retain game         information.

CONTROL CABLE: The cable has two 22 AWG stranded copper conductors with semi-rigid PVC insulation. It also has a braided shield and a foil shield. The polyethylene jacket is rated at 300              volts. The cable measures approximately ¼" in diameter. One length is required to run from the      scoreboard to the point of operation.

JUNCTION BOX AND EXTENSION CABLE: A 4 ¼" x 2 ¼" x 2" junction box with a stereo jack     mounted on the face is attached to the control cable at the point of operation. A ten foot extension       cable connects the control console to the junction box.

WARRANTY: Five year limited warranty.

SCOREBOARD INSTALLATION

This scoreboard is designed for indoor use only. Installation of the scoreboard consists of mounting the scoreboard cabinet to the wall and making the proper electrical connections.

ATTACHING THE OPTIONAL BOTTOM SPONSOR PANEL

Remove the front panel from the sponsor panel. Align the holes in the top of the sponsor panel with the tapped holes in the bottom of the scoreboard. Fasten the sponsor panel in place using the provided bolts. Note: Tapped holes are only installed in scoreboards that included a bottom sponsor panel as part of the order.

MOUNTING THE SCOREBOARD

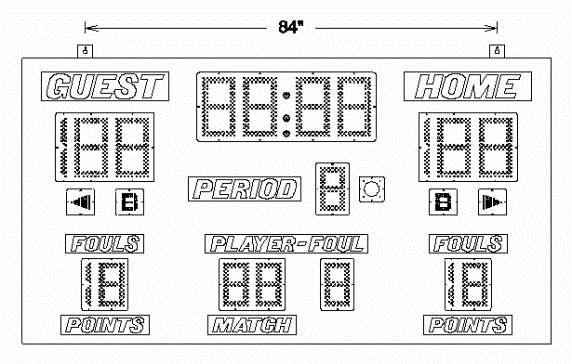

Be sure to mount the scoreboard close enough to the wall receptacle so that you can plug in the 6 foot power cord. There are two eyebolts mounted at the top of the cabinet which can be used to lift the scoreboard into place. Once the scoreboard is in the desired location, it can be fastened to the wall using lag bolts or other suitable hardware. Hanger brackets at the top of the scoreboard provide convenient mounting points. Figure 1 shows the mounting point locations for MODEL 2655.

Figure 1 Model 2655 Mounting Points

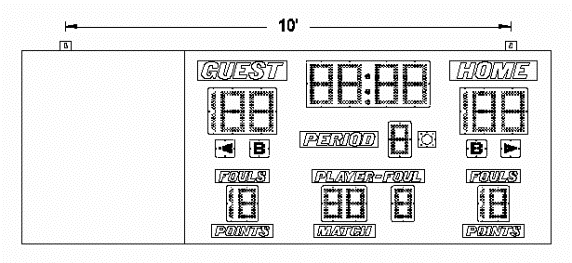

Figure 2 shows the mounting point locations for MODEL 2655 with an optional side sponsor panel.

Figure 2 Model 2655 with Optional Side Sponsor Panel Mounting Points

Figure 3 shows the mounting point locations for MODEL 2655 with two optional side sponsor panels.
