GENERAL: This ETL listed scoreboard includes the scoreboard cabinet, mounting hardware, control console, control cable (sold separately), 10 ft. extension cable, and junction box.
DIMENSIONS: 108" L x 60" H x 6" D (2650 with side sponsor panel measures 156" L x 60" H x 6" D) (2650 with two side sponsor panels measures 204" L x 60" H x 6" D)
WEIGHT: Approximately 135 lbs (2650 with side sponsor panel weighs 165 lbs) (2650 with two side sponsor panels weighs 195 lbs)
SCOREBOARD CONSTRUCTION: The outer frame is made from extruded aluminum. Internal structural parts may be extruded aluminum or formed from aluminum sheet. The face and back are made from aluminum sheet. The face is finished with enamel paint. Black is the standard face color. White is the standard color for the sponsor panel and captions.
DISPLAY: The 2650 basketball scoreboard displays HOME and GUEST scores to 199, a 99:00 clock with 1/10th of a second timing, PERIODS to 4, HOME and GUEST bonus and possession symbols, HOME and GUEST team fouls, PLAYER NUMBER and FOULS. It has an internal horn.
DIGITS AND SYMBOLS: Light emitting diodes mounted on printed circuit boards form the digits and symbols. The clock is formed with 12" red digits, the HOME and GUEST scores are formed with 12" yellow digits, the PERIOD, PLAYER NUMBER and FOULS are formed with 9" green digits, the HOME and GUEST team fouls are formed with 9" yellow digits, bonus symbols are green, the possession symbols and colon / decimal symbols are red.
|POWER REQUIREMENTS: Scoreboard - 120 VAC, 1 A, 60 Hz, 120 watts maximum. The scoreboard has an attached 6 foot power cord. Control Console - 120 VAC, 0.5 A, 60 Hz |
SCOREBOARD ELECTRONICS: 100% solid state fully enclosed.
CONTROL CONSOLE: The microprocessor control console is constructed of a rugged plastic housing with a metal back plate. It features a 37 key sealed membrane keypad, a LCD display of game information, an attached 6 foot power cord, and a lithium cell battery backup to retain game information.
CONTROL CABLE: The cable has two 22 AWG stranded copper conductors with semi-rigid PVC insulation. It also has a braided shield and a foil shield. The polyethylene jacket is rated at 300 volts. The cable measures approximately ¼" in diameter. One length is required to run from the scoreboard to the point of operation.
JUNCTION BOX AND EXTENSION CABLE: A 4 ¼" x 2 ¼" x 2" junction box with a stereo jack mounted on the face is attached to the control cable at the point of operation. A ten foot extension cable connects the control console to the junction box.
WARRANTY: Five year limited warranty.
This scoreboard is designed for indoor use only. Installation of the scoreboard consists of mounting the scoreboard cabinet to the wall and making the proper electrical connections.
ATTACHING THE OPTIONAL BOTTOM SPONSOR PANEL
Remove the front panel from the sponsor panel. Align the holes in the top of the sponsor panel with the tapped holes in the bottom of the scoreboard. Fasten the sponsor panel in place using the provided bolts. Note: Tapped holes are only installed in scoreboards that included a bottom sponsor panel as part of the order.
MOUNTING THE SCOREBOARD

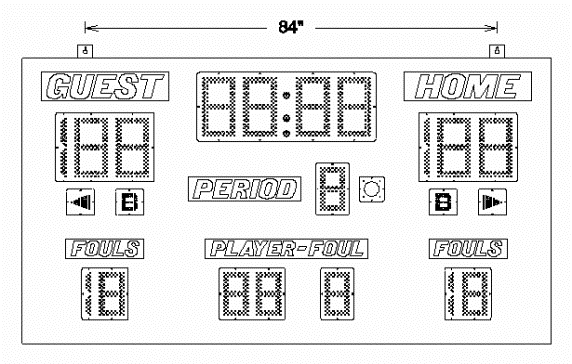

Be sure to mount the scoreboard close enough to the wall receptacle so that you can plug in the 6 foot power cord. There are two eyebolts mounted at the top of the cabinet which can be used to lift the scoreboard into place. Once the scoreboard is in the desired location, it can be fastened to the wall using lag bolts or other suitable hardware. Hanger brackets at the top of the scoreboard provide convenient mounting points. Figure 1 shows the mounting point locations for MODEL 2650.
Figure 1 Model 2650 Mounting Points

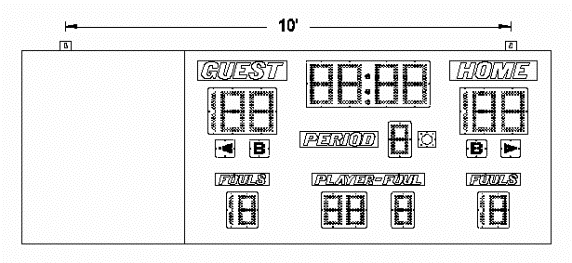

Figure 2 shows the mounting point locations for MODEL 2650 with an optional side sponsor panel.
Figure 2 Model 2650 with Optional Side Sponsor Panel Mounting Points

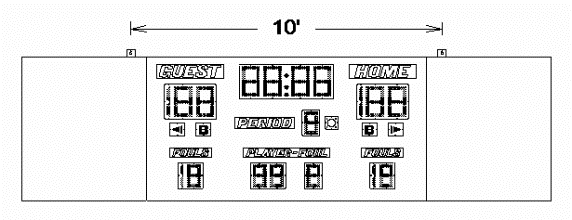

Figure 3 shows the mounting point locations for MODEL 2650 with two optional side sponsor panels.
Figure 3 Model 2650 with 2 Optional Side Sponsor Panels Mounting Points
